Marine Hydraulic Outboard Steering Cylinder For Boats Up To 90 Hp ZA0301C

Winibo ZA0301 marine Hydraulic Outboard Steering System boat steering cylinder helm up to 90HP

Quality Winibo brand sold Worldwide.

Will fit outboards up to 90hp

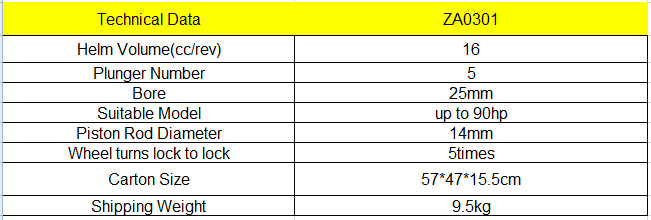

• Piston rod diameter 14 mm

• Stroke 213 mm

• Tube ID 25 mm

• Rod OD 14 mm

• Output force 232kgf

• Cylinder volume 71.1cc

The steering system in accordance with the (Rules for classification of ships) on the steering gear in the requirements for the design, the use of open-type valve hydraulic system and swing cylinder piston to push the rudder mechanism, with avariety of valve type or autopilot servo steering instrument to match the ship's steering control system components, and undertake the task of changing and maintaining the course of the ship.

This kind can be divided into 3 types:

ZA0301----can be used for 90hp outboard engine

ZA0300--can be used for 90-150hp outboard engine

ZA0350--can be used for 150-300hp outboard engine

The standard of form a complete set: 8m hydraulic pipe, fuel cylinder, fuel pump and connecting accessories. Steering wheel optional (random)

The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY / MARINER, NISSAN.

Our precision marine hydraulic steering kit is a complete replacement for tired, worn out helms. Compatibility with most outboard motors up to 90 hp gives you piece of mind purchasing our kit, knowing you will get many years of enjoyment of your new steering. Hydraulic steering removes the concern of seized cables and gives you effortless steering, just like when your boat was new!

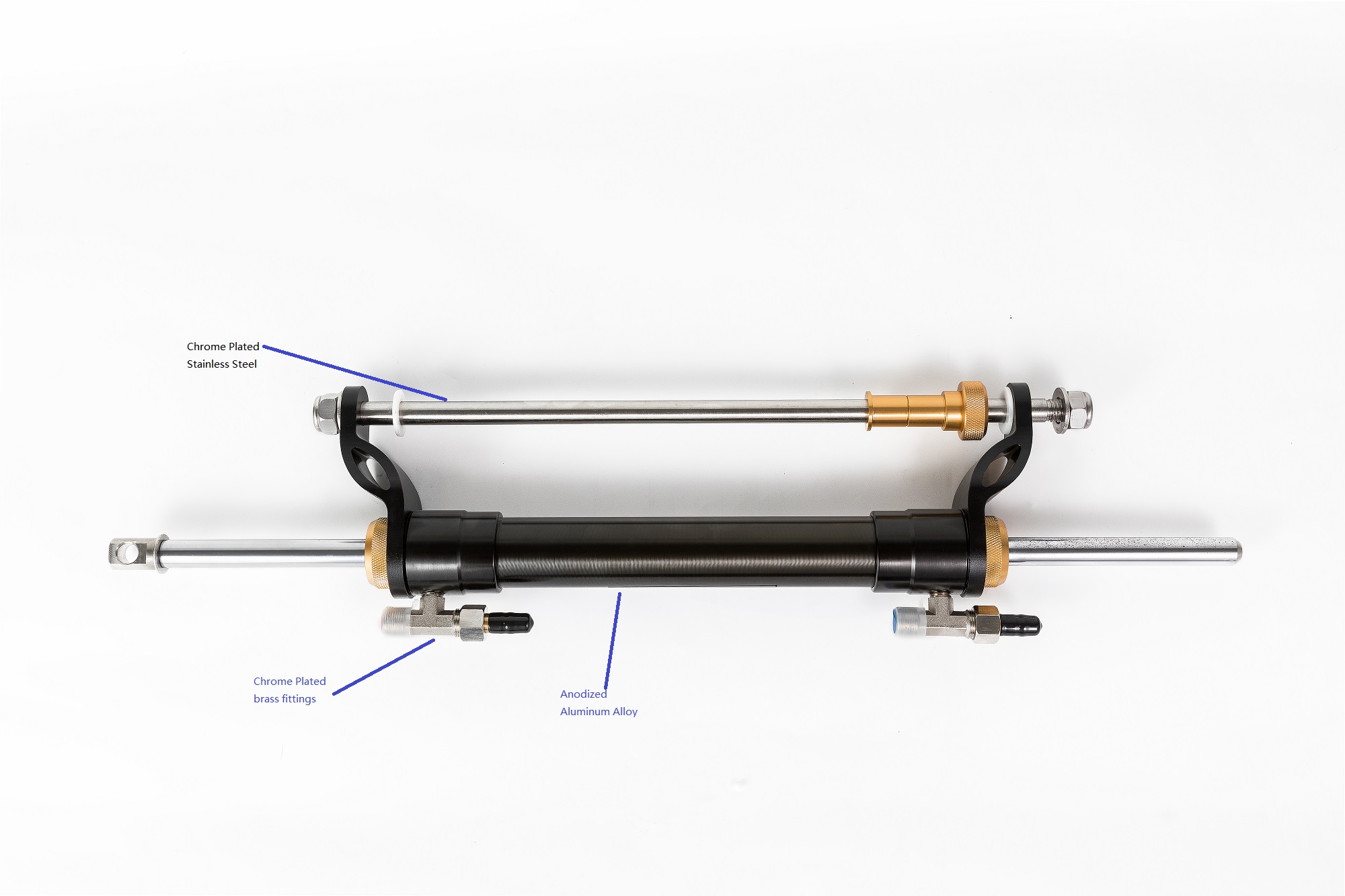

Hydraulic Outboard Steering Cylinder

90HP Marine Outboard Steering Cylinder

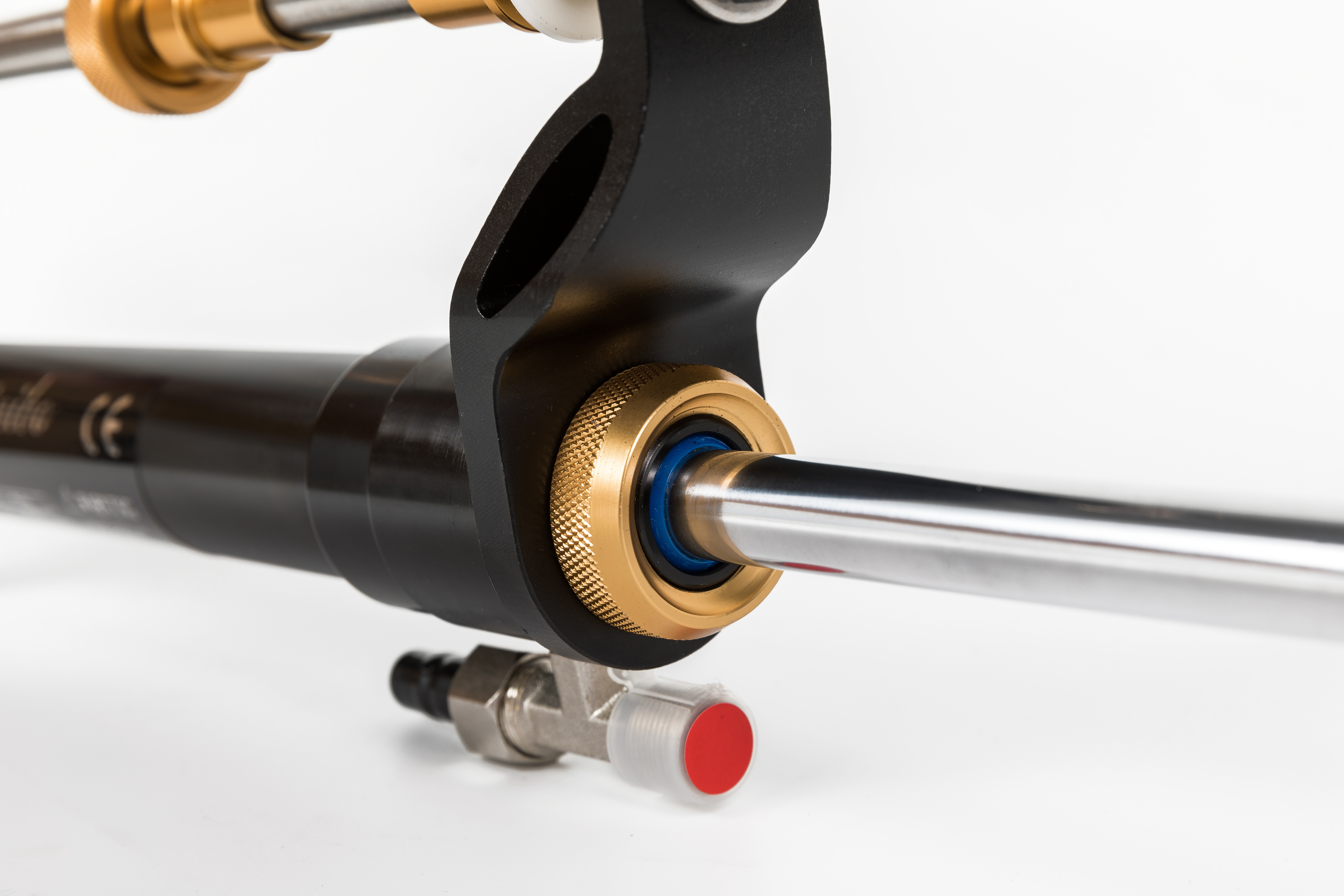

Winibo Marine Steering Cylinders
